Accessible parking marking is the painted system of ADA-compliant stalls, access aisles, wheelchair symbols, and signage that tells drivers exactly where reserved handicap spaces sit in a lot. However, getting this layout right is far more than a cosmetic choice — it is a legal obligation tied directly to federal accessibility law, and mistakes can trigger fines, lawsuits, and denied occupancy permits. In this guide, we go further than any competing resource by covering every dimension, material, cost factor, maintenance cycle, and compliance nuance that property owners in Denton and Plano, TX — and anywhere else in the country — need to understand before hiring a striping crew.

What Is Accessible Parking Marking?

Accessible parking marking is the combination of painted stall lines, access aisles, the International Symbol of Accessibility, and posted signage that identifies ADA-reserved parking spaces. Specifically, these markings must follow dimension standards set out in the Americans with Disabilities Act, as well as any additional Texas building codes that apply on top of the federal minimum.

Because these spaces serve people who use wheelchairs, walkers, or have limited mobility, precision matters enormously. A misaligned stall or an access aisle that is only a few inches too narrow can make a space effectively unusable, even though it looks compliant from a distance. For a broader overview of the disability rights framework behind these rules, the Wikipedia entry on the ADA offers useful historical context.

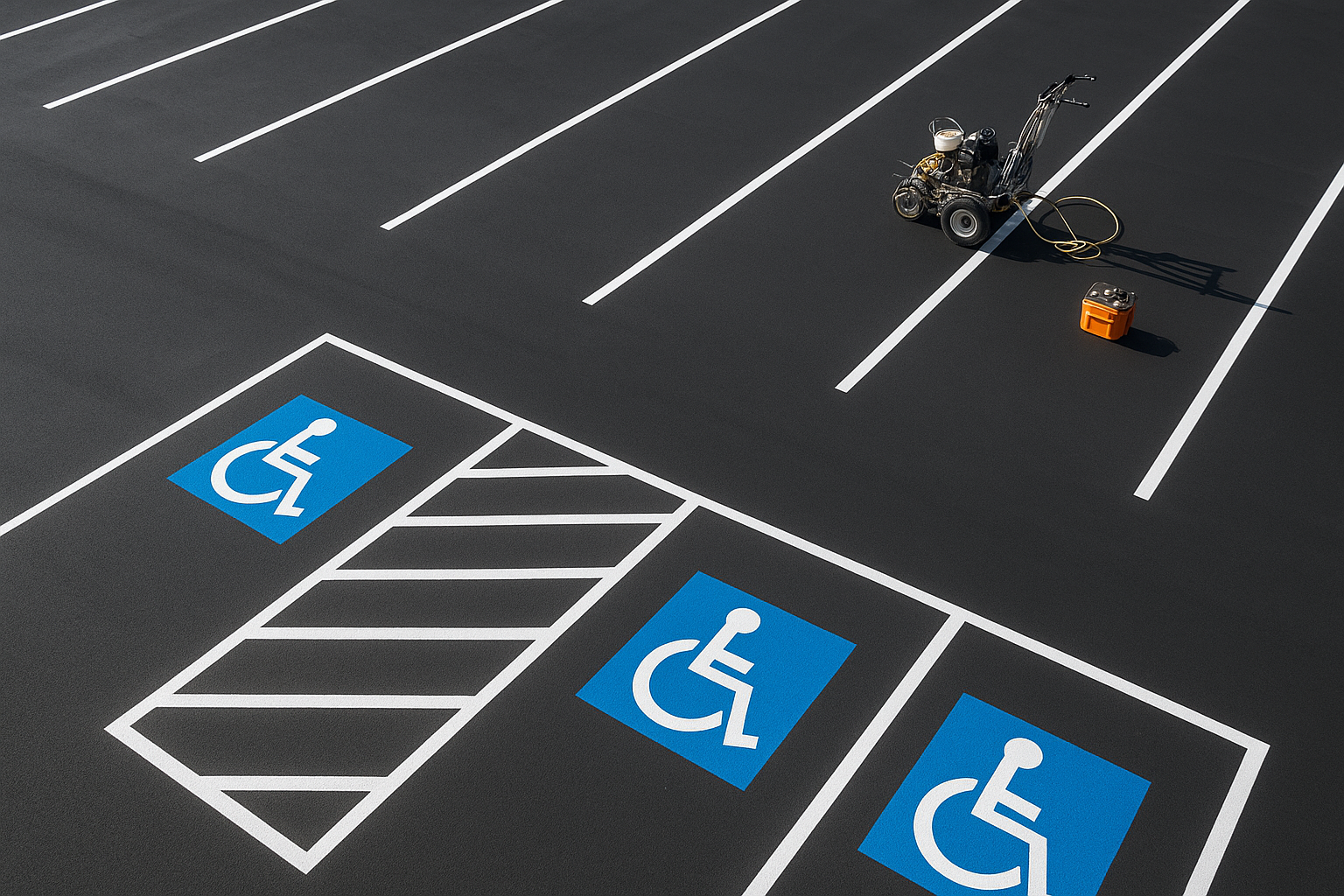

Clear accessible parking marking helps drivers identify ADA stalls at a glance.

Accessible Parking Marking vs. Standard Stall Striping

Standard parking stalls only need to meet basic width and length guidelines set by local zoning code. ADA parking markings, in contrast, require specific access aisles, van-accessible ratios, and visible symbols that standard stalls never need. In addition, accessible stalls must connect to an unobstructed accessible route — a requirement that has no equivalent in ordinary striping work.

Why Accessible Parking Marking Matters for Every Property

Commercial properties nationwide face scrutiny from both state regulators and federal enforcement. As a result, outdated or faded ADA parking markings remain one of the most common triggers for accessibility complaints filed against retail centers, healthcare facilities, schools, and municipal buildings.

Furthermore, well-executed accessible parking marking improves traffic flow and reduces liability. For example, clearly defined stalls and aisles reduce the risk of vehicle-to-vehicle contact and help drivers with mobility devices exit safely. Consequently, properties that invest in quality striping tend to see fewer complaints and smoother day-to-day operations.

According to guidance published by the U.S. Access Board, roughly one in four adults in the United States lives with some form of disability. That statistic alone underscores why accurate accessible parking marking is not a minor detail — it directly affects a large share of visitors, customers, and employees every single day.

The Legal Framework Behind ADA Parking Markings

The dimensional rules for accessible parking marking trace back to the 2010 ADA Standards for Accessible Design, specifically Section 502 (parking spaces) and Section 208 (scoping requirements). Title III of the ADA applies these standards to nearly every commercial facility open to the public, while Title II covers state and local government lots. In Texas, the state building code layers on additional requirements enforced by the Texas Department of Licensing and Regulation, so properties technically answer to two overlapping sets of rules at once.

What Happens When Accessible Parking Marking Fails

When accessible parking marking is missing, faded, or incorrectly sized, three things typically follow. First, a visitor or advocacy group may file a formal complaint with the Department of Justice. Second, local building inspectors may flag the lot during a routine occupancy or renewal inspection. Third, and most costly, a property may face a private lawsuit under Title III, since the ADA allows individuals to sue for injunctive relief and attorney’s fees even without proof of injury.

Key ADA Requirements for Handicap Parking Stripe Markings

Handicap parking stripe markings must follow several dimensional rules. Below are the core requirements most commercial properties need to meet, regardless of state:

• Standard accessible stalls: minimum 96 inches wide with a 60-inch access aisle.
• Van-accessible stalls: 96-inch aisle or an 11-foot-wide stall, required at a ratio of roughly one in every six accessible spaces.
• International Symbol of Accessibility painted in a contrasting, durable color within the stall.
• Accessible route connecting stalls to the building entrance without curbs, steps, or obstructions.
• Signage mounted at a specified height, visible even when a vehicle is parked in the space.
• Running slope no greater than 1:48 (2.08%) in any direction across the accessible stall and aisle.

Similarly, the number of required accessible stalls scales with total lot size. A lot with 500 to 1,000 spaces, for instance, typically needs at least 2% of its stalls to be accessible, per federal accessibility tables, while smaller lots under 25 spaces need only one accessible stall.

Van-Accessible Space Ratio Explained

Van-accessible spaces exist because wheelchair lifts and ramps need extra clearance to deploy safely beside a vehicle. Therefore, for every six accessible stalls painted in a lot, at least one must be van-accessible with either a wider 96-inch aisle or an 11-foot-wide stall paired with a standard 60-inch aisle. Skipping this ratio is one of the most frequently cited violations during accessibility audits.

Accessible Route and Signage Standards

Beyond the stall itself, accessible parking marking must connect to an unobstructed path leading to the building entrance. In particular, this accessible route cannot include a curb without a ramp cut, and it must be at least 36 inches wide. Signage, meanwhile, must sit high enough to remain visible even when a large vehicle occupies the adjacent space — typically 60 inches from the ground to the bottom of the sign.

Step-by-Step Process for Accessible Parking Marking Installation

Above all, a consistent process helps ensure every stall meets code the first time. Here is how a professional striping crew approaches an accessible parking marking project from start to finish:

1. Survey the lot and review code requirements. A technician measures the property and checks local, state, and ADA rules to determine the exact number of accessible and van-accessible stalls required.
2. Calculate stall counts and placement. The crew positions accessible stalls as close as possible to accessible building entrances, following required ratios and slope limits.
3. Lay out chalk lines for approval. Before any paint goes down, the layout is marked in chalk so property managers can confirm placement and raise concerns early.
4. Prepare and clean the surface. Old paint, debris, and oil residue are removed so new markings adhere properly and resist premature fading.
5. Apply stencils and premix traffic paint. Durable, reflective traffic paint is measured and mixed to spec before application to guarantee consistent coverage and color accuracy.
6. Paint stalls, symbols, and signage. Crews paint the stall borders, access aisles, and wheelchair symbols, followed by proper signage installation at code-compliant height.
7. Conduct a final compliance walkthrough. A last inspection confirms every dimension, ratio, and symbol meets ADA and local accessibility standards before the crew leaves the site.

Materials Used in Accessible Parking Marking

Not all paint performs the same way, so material choice affects how long accessible parking marking stays visible. Water-based traffic paint is the most common option because it is affordable and cures quickly, though it typically lasts 18 to 24 months in high-traffic Texas heat. Thermoplastic markings, by contrast, are heat-fused into the pavement and can last three to five years, making them a smart choice for high-traffic accessible stalls near hospital or retail entrances. Preformed tape markings offer a fast, low-odor alternative for indoor garages or properties that cannot tolerate paint fumes during business hours.

Common Mistakes in Accessible Parking Space Markings

Even well-intentioned property owners run into trouble with accessible parking space markings. In particular, watch for these frequent issues.

First, undersized access aisles are among the most cited violations, since a few missing inches can render a stall noncompliant. Second, many older lots lack the required ratio of van-accessible spaces, especially after expansions or remodels changed the total stall count. Third, faded blue paint and worn symbols often go unnoticed until an inspection or complaint brings them to light. Fourth, property owners sometimes place accessible stalls on a slope steeper than 1:48, which makes wheelchair transfer dangerous even when the stall dimensions are technically correct.

Therefore, routine inspection paired with a restriping schedule helps catch these problems before they become liabilities.

Self-Audit Checklist for Property Managers

Before an official inspection ever happens, property managers can walk the lot themselves using this quick checklist:

• Measure at least one stall and aisle with a tape measure to confirm 96-inch minimums.
• Count total accessible stalls against total lot capacity to confirm the correct percentage.
• Verify at least one van-accessible stall exists for every six accessible spaces.
• Check that painted symbols and borders are fully visible from a moving vehicle.
• Confirm signage is present, upright, and readable at the required mounting height.

What Accessible Parking Marking Costs

Costs vary by lot size, paint type, and number of stalls, but most commercial properties pay between $75 and $250 per stall for full ADA marking, including symbols and signage. Thermoplastic markings cost more upfront — often two to three times the price of paint — but their longer lifespan can lower the total cost of ownership over five years. In addition, some businesses may qualify for a federal tax incentive: the IRS Disabled Access Credit (Form 8826) allows eligible small businesses to claim a credit for accessibility improvements, including ADA parking upgrades.

Choosing a Professional Striping Company in Denton and Plano

When it comes to accessible parking marking, precision and local code knowledge matter just as much as paint quality. Stripespls.com, based in Texas, specializes in professional striping, ADA compliance markings, and fire lane marking for commercial and residential properties throughout the Denton and Plano areas.

The company works with property managers, retail centers, schools, healthcare facilities, and municipal organizations across North Texas. Whether a property needs a brand-new layout through parking lot striping services or a refresh of faded lines, requesting a free quote through the stripespls.com website is the fastest way to get an accurate assessment.

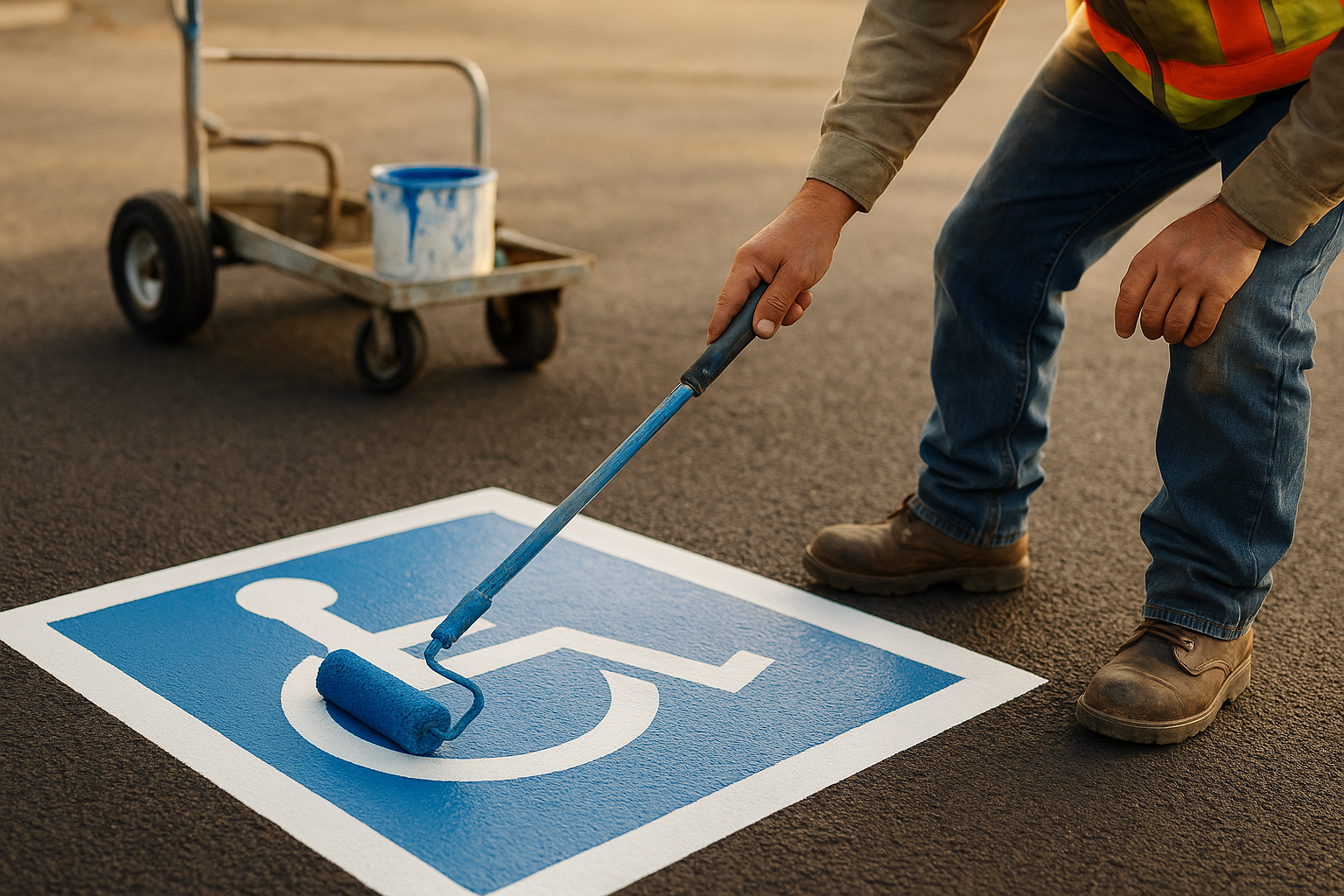

Professional crews follow strict dimension and color standards for every accessible parking marking project.

Maintaining Accessible Parking Markings Over Time

Texas heat and UV exposure fade paint faster than in cooler climates. As a result, most commercial lots need touch-ups or full restriping every 18 to 24 months to keep accessible parking markings clearly visible and compliant.

In addition, regular sweeping and periodic inspections help property owners catch fading or damage early, well before it becomes a compliance issue during an audit or complaint.

Accessible Parking Marking Standards Beyond Texas

While this guide focuses on Denton and Plano requirements, the underlying framework applies nationwide. Consequently, properties in Ohio, California, or any other state follow the same core 2010 ADA Standards for stall width, aisle size, and van ratios — states simply layer their own building code amendments on top. As a result, a property owner comparing quotes across regions should always confirm that a contractor understands both the federal minimum and the specific state or municipal code that applies to their address.

Frequently Asked Questions

Final Thoughts on Accessible Parking Marking

Ultimately, accessible parking marking protects both property owners and the people who rely on ADA-designated stalls every day. From correct stall widths to visible symbols, signage, and slope compliance, every detail plays a role in keeping a lot safe and legally sound.

Consequently, routine inspections, a clear maintenance schedule, and timely restriping are the simplest ways to avoid fines and accessibility complaints. For property managers, retail centers, schools, and healthcare facilities across Denton and Plano, partnering with an experienced local striping team makes accessible parking marking one less thing to worry about. Above all, a clean, code-compliant lot reflects well on any property and supports every visitor who depends on those marked spaces.
